Computer program for calculating the cornering characteristics of individual vehicles and road trains

The program runs on all IBM-compatible MS-DOS computers that are running MS Windows XP, Vista, Windows 7, 8 or 10, 32 bit or 64 bit. Our programs do not run on Windows RT. We recommend that you use a PC with at least 2 GB of RAM and 20 MB of free space on the hard disk. A DVD drive is required to install the program. If you do not have a DVD drive on your computer, you can also obtain the program or programs on a USB memory card for a small supplement (also for updates).

We are not able to provide any guarantee/warranty that the data contained in TrailerWIN/CornerWIN will match the actual weights or dimensions of the vehicles or equipment. CornerWIN is available in Danish, German, English, Finnish, Italian, Swedish, Spanish and Turkish.

The program can be used together with TrailerWIN or by itself. The vehicles created in TrailerWIN can be adopted or the vehicles already available in CornerWIN or the data can be modified in accordance with individual needs.

CornerWIN can also run without TrailerWIN.

The following curves are possible:

  • in accordance with EC/StVZO (German highway code) with modifiable external and internal radius
  • smallest turning radius
  • 90° as per Swedish regulations
  • 90° as per Norwegian regulations
  • 90° general with modifiable internal and external radii
  • 90° as per Australian regulations
  • 120° with modifiable internal and external radii
  • 180° with modifiable internal and external radii
  • 360° circle with drive in and drive out, with modifiable internal and external radii
  • circles with modifiable angles (0…-360°) and modifiable internal and external radii
  • 3 x 360° circles as per EC (until smaller internal radius found) with modifiable internal and external radii
  • travel on predefined road sections
  • road sections can be created in CornerWIN
  • importing of own street sections (DXF file) and following these with the vehicle(s)
  • adjustable/editable steering geometries of semitrailers with steering axles

Product information/Pricelist

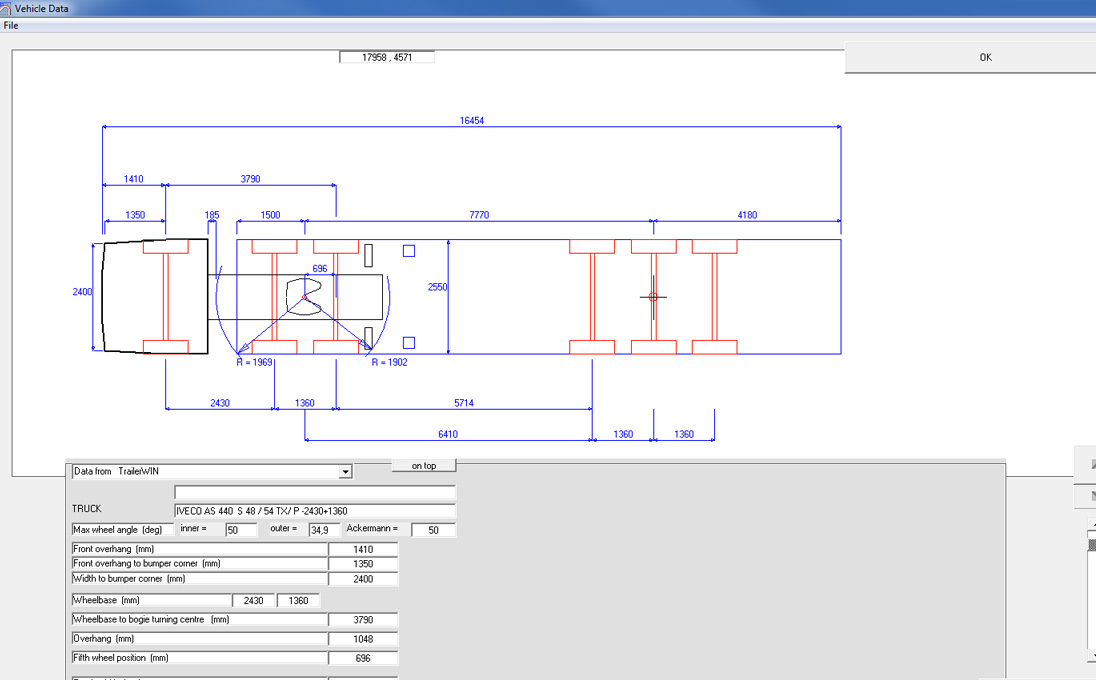

  • Fig. 1/7 Menü zur Datenanpassung (Auszug)

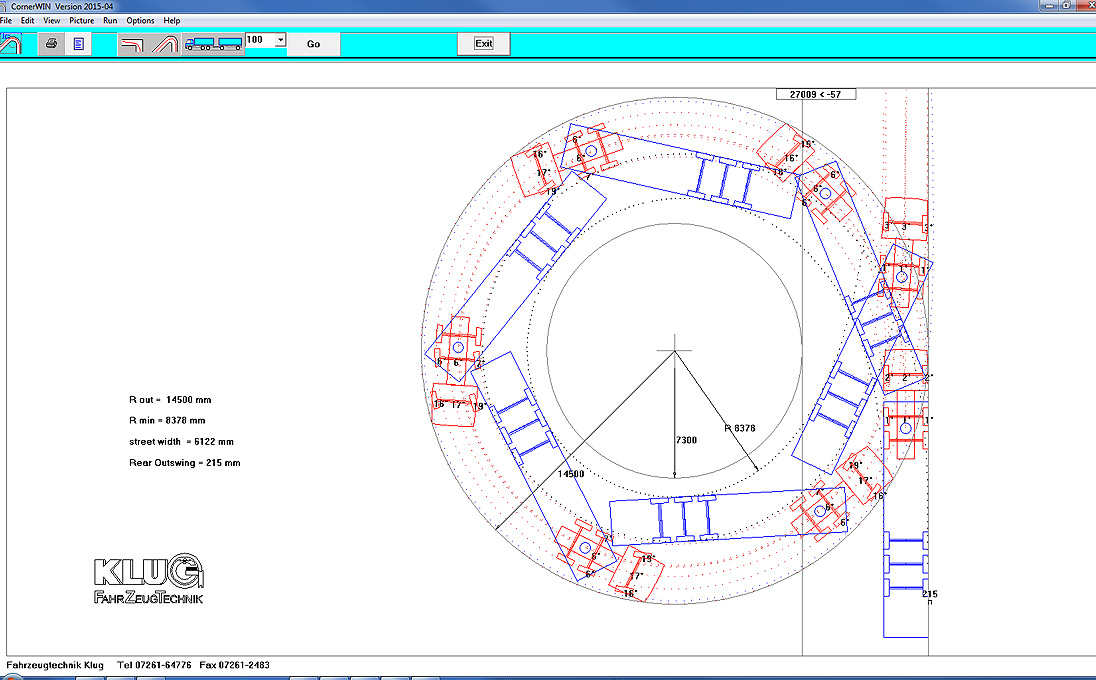

  • Fig. 2/7 360°-Kreisfahrt mit Ein- und Ausfahrt

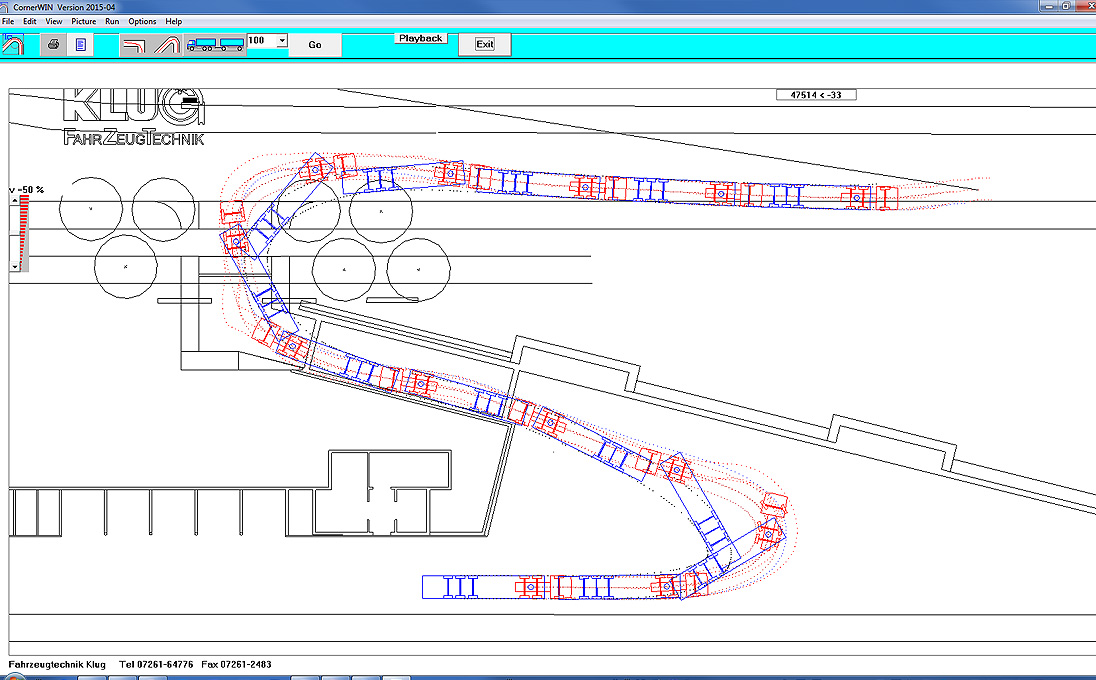

  • Fig. 3/7 Nachfahren einer in Planung befindlichen Hofeinfahrt (importierte DXF-Datei)

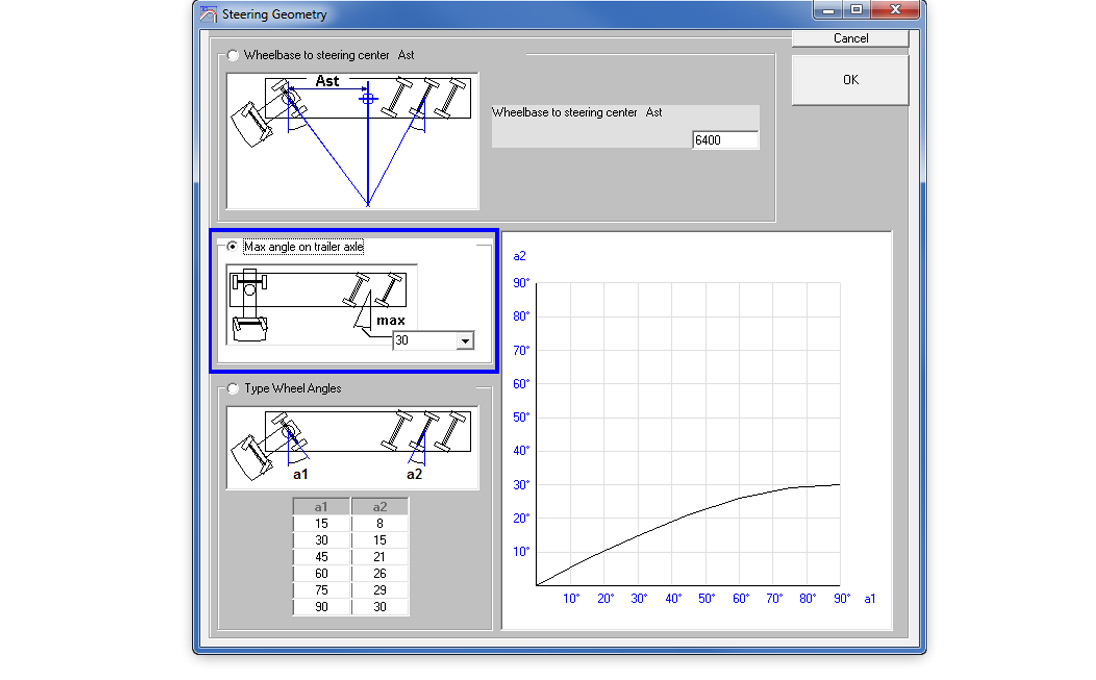

  • Fig. 4/7 Menü zur Einstellung der Lenkgeometrie eines allradgelenkten Sattelanhängers

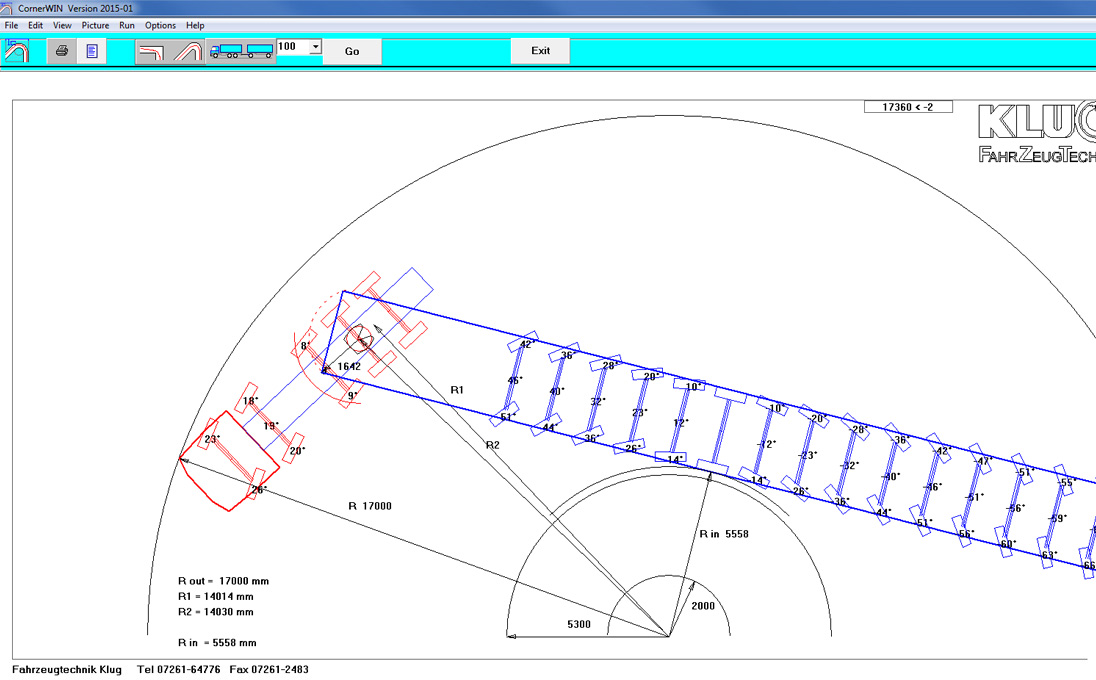

  • Fig. 5/7 Sattelauflieger mit 15 Lenkachsen

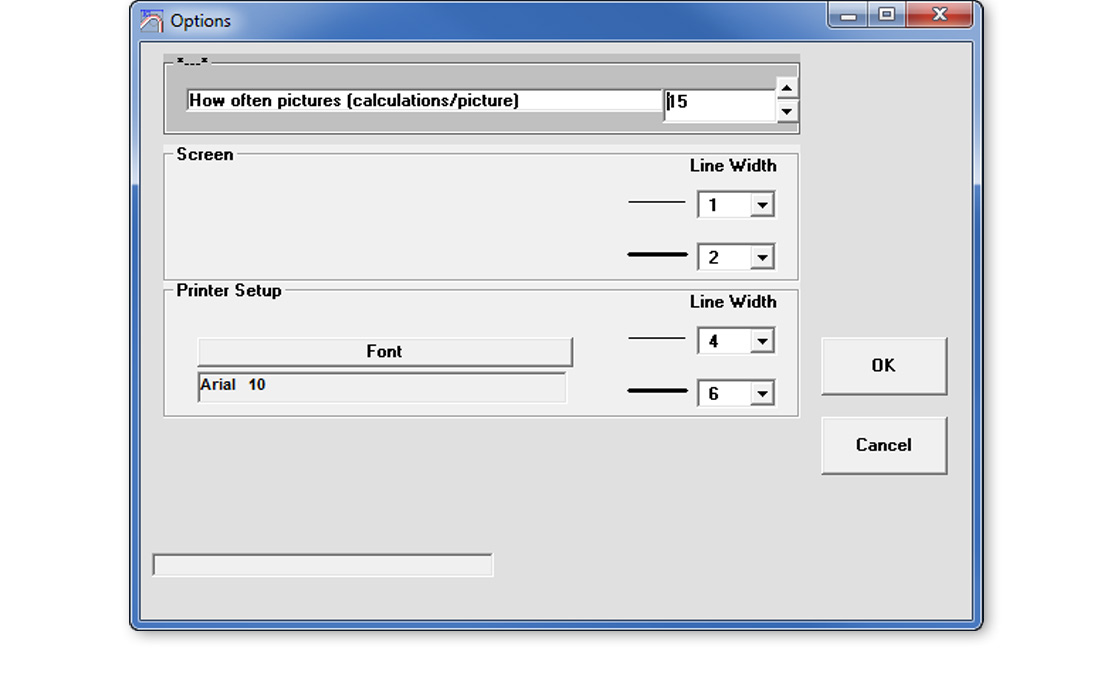

  • Fig. 6/7 Menü zur Einstellung des Bildschirms, des Druckers und der Wiederholung der Lastzugdarstellung bei Kurvenfahrt

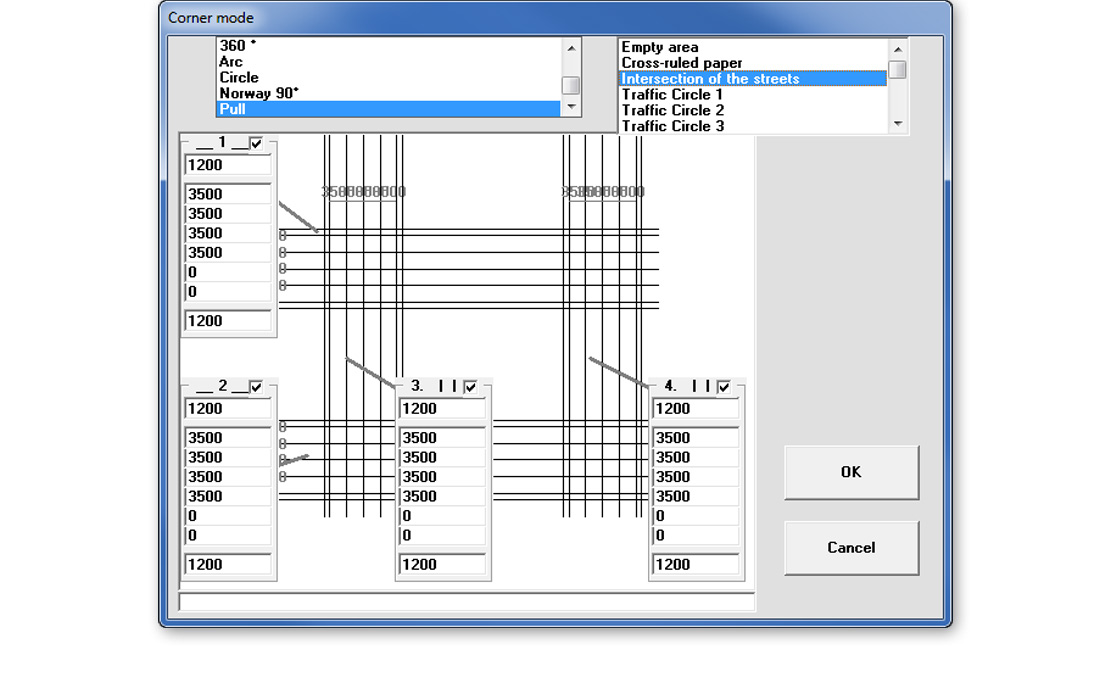

  • Fig. 7/7 Menü zur Erstellung einer Straßenkreuzung

The following vehicles / vehicle combinations are contained in CornerWIN and can be adapted to individual requirements, if for example CornerWIN is used without TrailerWIN:

S = rigid axle, L = steering axle

  • 2-axle tractor unit + 1-axle semitrailer
  • 2-axle tractor unit + city trailer (1-axle semitrailer with steering axle)
  • 2-axle tractor unit + 2-axle semitrailer
  • 2-axle tractor unit + 2-axle semitrailer (S-L)
  • 2-axle tractor unit + 2-axle semitrailer (L-L)
  • 2-axle tractor unit + 3-axle semitrailer: EU dimensions
  • 2-axle tractor unit + 3-axle semitrailer (S-S-L)
  • 2-axle tractor unit + 3-axle semitrailer (L-S-L)
  • 2-axle tractor unit + 3-axle semitrailer (S-L-L)
  • 2-axle tractor unit + 3-axle semitrailer (L-L-L)

  • 3-axle tractor unit + 1-axle semitrailer
  • 3-axle tractor unit + city trailer (1-axle semitrailer with steering axle)
  • 3-axle tractor unit + 2-axle semitrailer
  • 3-axle tractor unit + 2-axle semitrailer (S-L)
  • 3-axle tractor unit + 2-axle semitrailer (L-L)
  • 3-axle tractor unit + 3-axle semitrailer
  • 3-axle tractor unit + 3-axle semitrailer (S-S-L)
  • 3-axle tractor unit + 3-axle semitrailer (L-S-L)
  • 3-axle tractor unit + 3-axle semitrailer (S-L-L)
  • 3-axle tractor unit + 3-axle semitrailer (L-L-L)
  • 3-axle tractor unit + 4-axle semitrailer

  • 4-axle tractor unit + 2-axle semitrailer
  • 4-axle tractor unit + 2-axle semitrailer (S-L)
  • 4-axle tractor unit + 3-axle semitrailer (S-S-L)

  • 5-axle tractor unit + 4-axle semitrailer
  • 5-axle tractor unit + 5-axle semitrailer

  • 2-axle tractor unit + 2-axle trailer
  • 2-axle tractor unit + 3-axle trailer (EU)
  • 2-axle tractor unit + 3-axle trailer (S-S-L)
  • 2-axle tractor unit + 3-axle trailer (S-L-S)
  • 2-axle tractor unit + 2-axle centre axle trailer
  • 2-axle tractor unit + 3-axle centre axle trailer

  • 3-axle tractor unit + 2-axle trailer (EU)
  • 3-axle tractor unit + 2-axle centre axle trailer
  • 3-axle tractor unit + 3-axle centre axle trailer
  • 3-axle tractor unit + 3-axle trailer
  • 3-axle tractor unit + 3-axle trailer, steering axle at back
  • 3-axle tractor unit + 3-axle trailer, 2nd axle steering axle
  • 3-axle tractor unit + 4-axle trailer (Finland)
  • 3-axle tractor unit + 4-axle trailer (Sweden)
  • 3-axle tractor unit + 4-axle trailer (last axle steering)
  • 3-axle tractor unit + 5-axle trailer (last axle steering)

  • 3-axle tractor unit + 1+4-axle trailer (last axle = steering)
  • 3-axle tractor unit + 2+4-axle trailer (last axle = steering)
  • 3-axle tractor unit + 2+4-axle trailer (first and last axle = steering)
  • 3-axle tractor unit + 2+4-axle trailer (2 last axles steering)
  • 3-axle tractor unit + 2+4-axle trailer (first and 2 last axles = steering)
  • 3-axle tractor unit + 2+5-axle trailer (2 last axles = steering)
  • 3-axle tractor unit + 2+5-axle trailer (first and 2 last axles = steering)

  • 4-axle tractor unit + 4-axle trailer
  • 4-axle tractor unit Tridem + 4-axle trailer

  • 3-axle tractor unit
  • 2-axle tractor unit
  • 4-axle tractor unit L-L_S-S
  • 4-axle tractor unit L-L_S-L
  • 4-axle tractor unit L_L-S-S
  • 4-axle tractor unit L_S-S-L
  • 4-axle tractor unit L_L-S-L
  • 5-axle tractor unit L-L_L-S-S
  • 5-axle tractor unit L-L_S-S-L
  • 5-axle tractor unit L-L_L-S-L
  • 6-axle tractor unit L-L_L-S-S-L
  • Tractor unit with trailer coupling
  • Tractor unit with fifth wheel coupling

  • B-double combination 3+3+3 axles
  • B-double combination FH12 3+3+3 axles
  • B-double combination 3+3+2 axles
  • 2-axle tractor unit + 3-axle semitrailer + 2-axle centre axle trailer
  • 3-axle tractor unit + 3-axle semitrailer + 2-axle centre axle trailer
  • 4-axle tractor unit + 2-axle semitrailer + 3-axle centre axle trailer
  • Tractor unit + semitrailer + trailer
  • Tractor unit + 2 trailers
  • Double B-double combination 3+3+2 axles

  • Heavy transport semitrailer (L-L_S-S)
  • Heavy transport semitrailer (L-L-L-L)
  • Heavy transport semitrailer (L-L-L-L-L)
  • Heavy transport semitrailer (L-L_L-L-L-L-L)
  • Heavy transport trailer (L-L-L-L_L-L-L-L-L)
  • 5-axle tractor unit + heavy transport trailer 5 steering axles
  • 5-axle tractor unit + heavy transport trailer 2+5 steering axles
  • 5-axle tractor unit + heavy transport trailer 4+5 steering axles
  • 5-axle tractor unit + heavy transport trailer 15 steering axles

  • Scheurle comb 001 __3+2+3
  • Scheurle comb 004 __2+3
  • Scheurle comb 006 3__2+3
  • Scheurle comb 007 3__2+3
  • Scheurle comb 009 __3+3
  • Scheurle comb 010 __3+3+3
  • Scheurle comb 011 __3+2+3+3
  • Scheurle comb 012 2__3
  • Scheurle comb 013 2__3+3

  • LTM 1070/2 T50m
  • LTM 1200-5.1
  • LTM 1400-7.1

  • D_Test_4-axle low bed trailer with swan neck approx. 16600 (MAN TGA)
  • D_Test_4-axle low bed trailer with swan neck approx. 16600+2750 (MAN TGA)
  • D_Test_4-axle low bed trailer with swan neck approx. 16600 (VOLVO F12)
  • D_Test_4-axle low bed trailer with swan neck approx. 16600+2750 (VOLVO F12)
  • D_Test_4-axle low bed trailer-2axle dolly + swan neck (MAN TGA)
  • D_Test_4-axle low bed trailer-2axle dolly + swan neck (VOLVO F12)
  • D_Test_8-axle platform (MAN TGA)
  • D_Test_8-axle platform (VOLVO F12)
  • Tirsan_DAF_5axle_semitrailer
